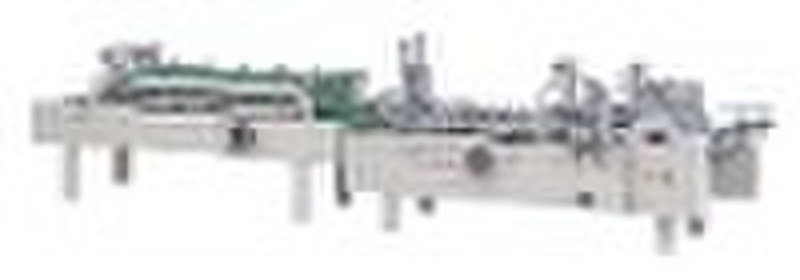

LY-SHH model automatic folder gluer

LY-SHH model automatic folder gluer machine belongs to economic type product, with broad usage and flexible debug, such as the medicine box cosmetics box and the smaller box, such as match boxes etc. The min widest can make 70MM open size of the boxes. Major technical indexModelAMaxAMinBMaxBMinCMinDMinFMinSHH-800wide belt700mm 70mm520mm110mm8mm70mm51mmSHH-1200 wide belt 700mm70mm790mm110mm8mm70mm51mmSHH-800 narrow blet 700mm70mm520mm70mm8mm70mm35mmCharacteristicsLinear velocity0 220m/minSuitable paper quality220 800g/m² cardpaperPaste box basic formOne-side edge pastes, two-side edge pastes.Feeding wayAutomatically and continuously feedingAdhesiveSolute typeNeeded powerAC220V 3.5KWWeight1500KGOverall Size5300mm×820(1250)mm×1300mmThe scope of Count0 999999 1,Continuously and automatically paper feeding. 2,One side as well as two sides all can be pasted. 3,The fold part can be adjusted to one step to position. 4,The gluing part can be adjusted to one step to position. 5,The Press and delivery part can move front and back to one step to position(especially Convenience to long wine box). 6,Paper feeding, folding and pressing are divided into the stepless frequency speed control to one step to position. 7,The microcomputer photoelectricity count is accurate. 8,Economic and flexible.
